EDF 550N-790N推力電驅涵道動力

無人機/飛行摩托/ 電驅動涵道風扇動力系統 (從160N-790N列表)

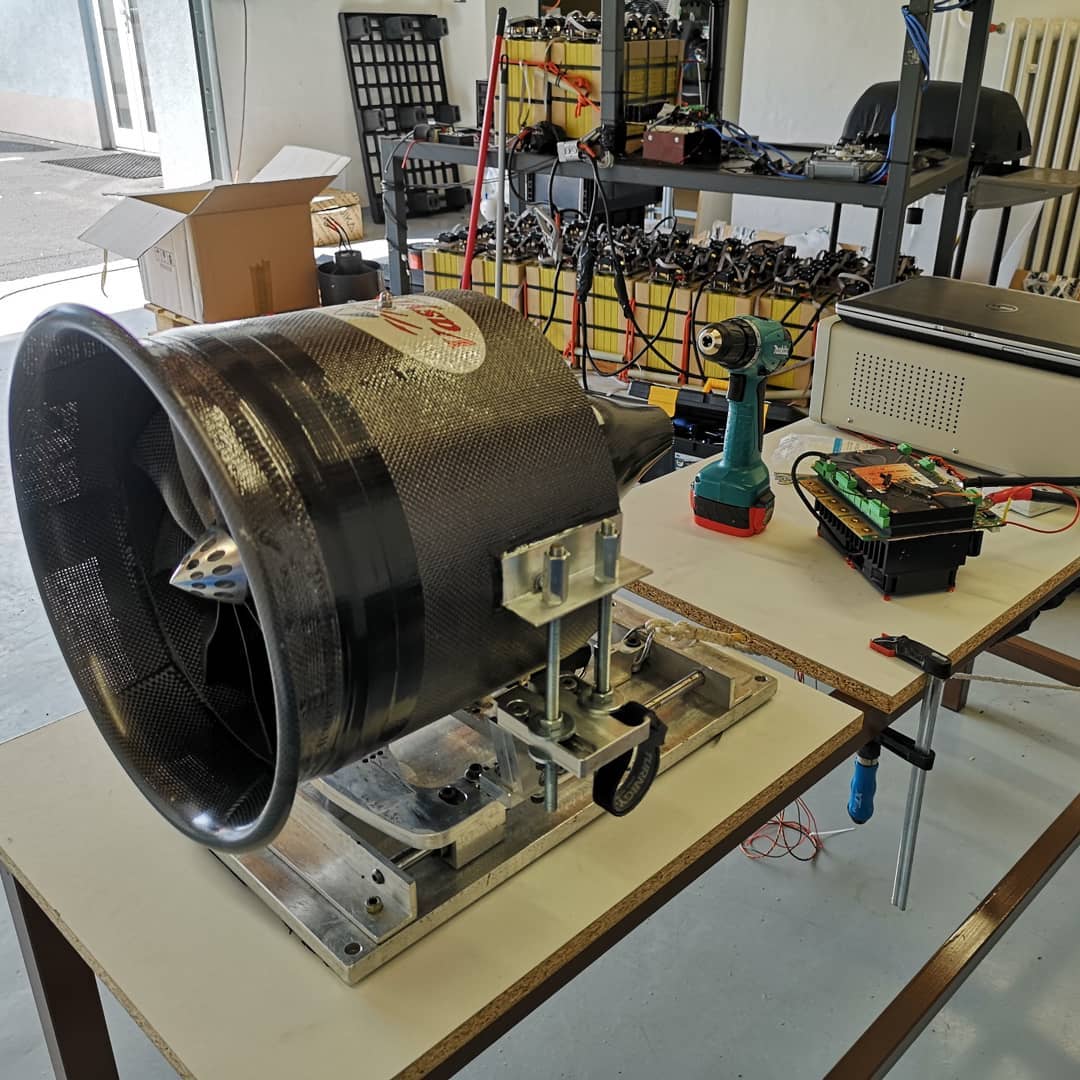

UT-303mm

TECHNICAL DATA

Cylinder internal diameter: 303mm

Weight with inlet lip and mounting brackets: 1200g,

Thrust range: 550N continuous, 790N for a few seconds

Exhaust speed range: 90m/s - 130m/s

RPM range: 12.000RPM - 18.000RPM

Input power: 12kw-33kW

Allowed battery: 12S - 24S 16.000+mAh

Allowed controller (ESC): 15KW - 30KW

Global efficiency: 80%

Weight with inlet lip and mounting brackets: 1200g,
Thrust range: 200N - 400N
Exhaust speed range: 90m/s - 130m/s
RPM range: 12.000RPM - 18.000RPM
Input power: 12kW - 27kW
Allowed battery: 12S - 24S 16.000+mAh
Allowed controller (ESC): 15KW - 30KW
Global efficiency: 80%

CATEGORY EDF	WEIGHT	SYSTEM THRUST (IN NEWTON)	RECOMMENDED ESC, WEIGHT

UTVF-160 mm + 10KW engine (model TS-MI-5380)	1,6 kg	120N continuous, 150N for a few seconds

UTVF-160 mm + 14KW engine (model TS-MI-64100)	2,2 kg	150N continuous, 210N for a few seconds	MGM 15KW 28S 1 kg

UTVF-160 mm NACELLES + 14KW engine (model TS-MI-64100)	2,5 kg	150N continuous, 210N for a few seconds	MGM 15KW 28S 1 kg


UTVF-174 mm + 14KW engine (model TS-MI-64100)	2,4 kg	165N continuous, 225N for a few seconds	MGM 15KW 28S 1 kg

UTVF-174 mm NACELLES + 14KW engine (model TS-MI-64100)	2,6 kg	165N continuous, 225N for a few seconds	MGM 15KW 28S 1 kg


UTVF-250 mm + 25KW engine (model TS-MI-11080)	6,1 kg	350N continuous, 450N for a few seconds	MGM 33KW 28S 2,5 kg

UTVF-250 mm + 28KW engine (model TS-MI-110120)	7.2 kg	400N continuous, 500N for a few seconds	MGM 33KW 28S 2,5 kg

UTVF-250 mm + 33KW engine (model TS-MI-110160)	9,6 kg	430N continuous, 550N for a few seconds	MGM 33KW 28S 2,5 kg

UTVF-250 mm NACELLS + 28KW engine (model TS-MI-110120)	7,8 kg	400N continuous, 550N for a few seconds	MGM 33KW 28S 2,5 kg


UTVF-390 mm + 28KW engine (model TS-MI-110120)	9,2 kg	500N continuous, 700N for a few seconds	MGM 33KW 28S 2,5 kg

UTVF-390 mm + 33KW engine (model TS-MI-110160)	11, kg	550N continuous, 790N for a few seconds	MGM 33KW 28S 2,5 kg

UTVF-390 mm NACELLES + 33KW engine (model TS-MI-110160)	12, kg	550N continuous, 790N for a few seconds	MGM 33KW 28S 2,5 kg
